Platform Steel Grating

Platform Steel Grating

  • /uploads/product/month_1709/image/20170901114984148414.jpg
  • /uploads/product/month_1709/image/20170901114940814081.jpg
  • /uploads/product/month_1709/image/20170911103680038003.jpg
  • /uploads/product/month_1709/image/20170911103654515451.jpg

Material: Q235 or Stainless Steel
Bearing bar style: Plain, Serrated, I type
Surface treatment: G- Hot galvanized
P- Painted
U- Untreated

Email: sales@ap-fence.com.cn
  • Specifications

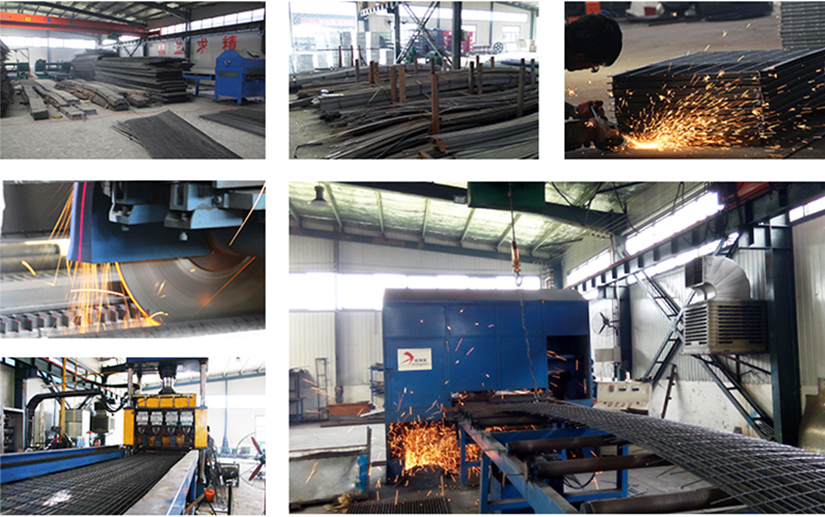

  • Workshop

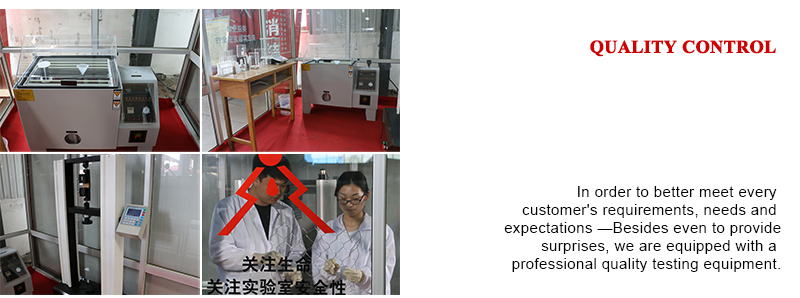

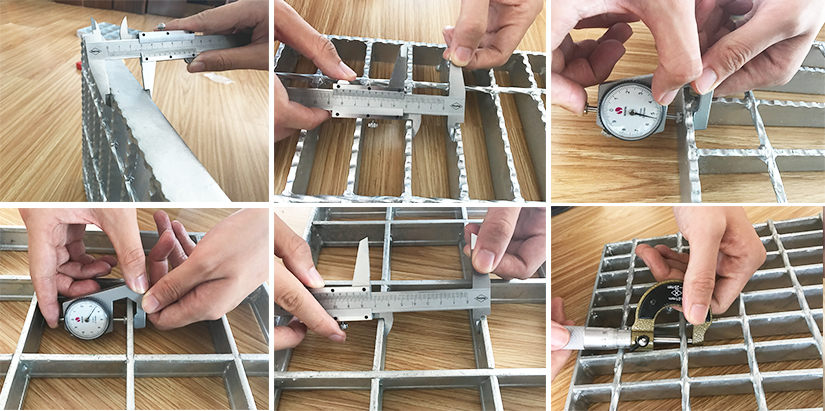

  • Quality Inspection

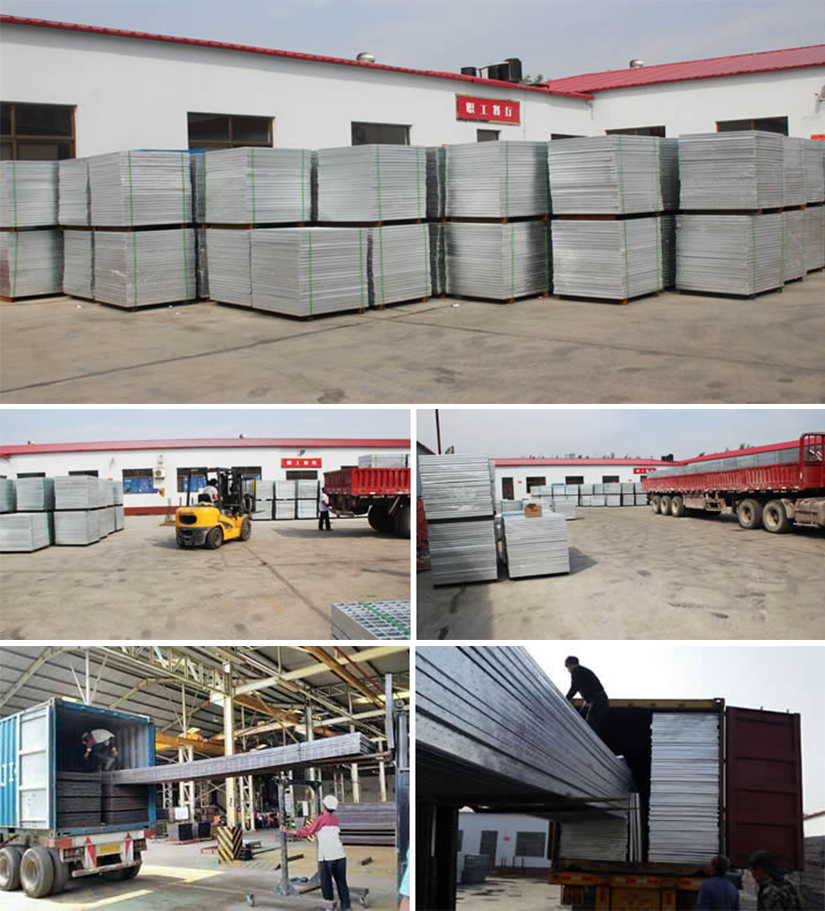

  • Packaging

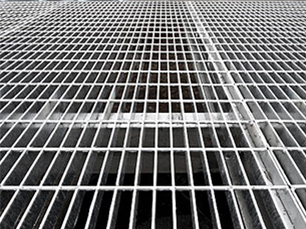

Platform steel gratings have wide applications especially for various fields in industry. It is a renewed construction product which possesses superior performance of air ventilation, lighting, slip resistance, high load bearing, beauty & durability, easy for installation and maintenance. It also can be assembled by accessories like kickplates, patterned shields, installation fittings, etc.
Specifications of Platform steel grating
No. Item Description
1 Bearing bar 20*5, 25*3, 25*4, 25*5, 30*3, 30*4, 30*5, 32*3, 32*5, 40*5mm, etc
2 Bearing bar pitch 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62,65, etc
3 Cross bar 5*5, 6*6, 8*8mm (Twisted bar or round bar)
4 Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customer’s requirement
5 Surface treatment Untreated, Hot dip galvanized, Electro galvanized, Powder coated,Painted or as customer’s requirement
6 Flat bar type Plain, Serrated, I bar
7 Material standard Low carbon steel ,Stainless steel
8 Galvanized standard CN: GB/T13912, US: ASTM(A123), UK: BS729
9 Steel grating standards A. China: YB/T4001-1998
B. USA:ANSI/NAAMM(MBG 531-88)
C. UK: BS4592-1987
D. Australia: AS1657-1988
E. Japan: JJS

Features:
1. Accessories like kickplates, patterned shields, installation fittings, etc. can be assembled to them.
2. Flat steel with different specification from the bearing bars can be used for hemmings. Other materials like angle bars, channel steel, square tubes are all good options.
3. Handles and hinges can be installed to the steel gratings which need frequent moving or opening.
4. Good ventilation of air and light.
5. Anti-slip and anti-explosion.
6. With strong strength, durable and high load bearing.

Application:

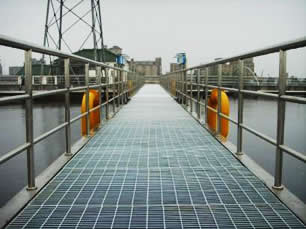

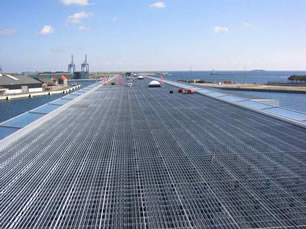

Platform steel gratings are suitable for using in various industrial buildings, such as metallurgy, building materials, power stations, boilers, ship building, petrochemical, other industrial buildings and municipal construction, etc.
  • Name:
  • Tel:
  • Email:
  • Content:

The factory of our company has high ability to manufacture galvanized steel grating in large quantity. We can ensure the quality at a competitive price,and we can manufacturer all kinds of galvanized steel grating.
