Gabion Box/Mattress

Gabion Box/Mattress

  • /uploads/product/month_1709/image/20170911101774877487.jpg
  • /uploads/product/month_1709/image/20170911162990259025.jpg
  • /uploads/product/month_1709/image/20170911170727222722.jpg
  • /uploads/product/month_1709/image/20170911170833023302.jpg
Product Name: Gabion Basket Gabion Box Reno mattress Gabion Mattress Stone Cage
Technology: Woven Mesh
Surface Treatment: Hot-dip Galvanized Eletro Galvanized PVC Coated PE Coated Galfan
Brand: Xinboyuan
OEM: YES
Email: sales@ap-fence.com.cn
  • Specifications

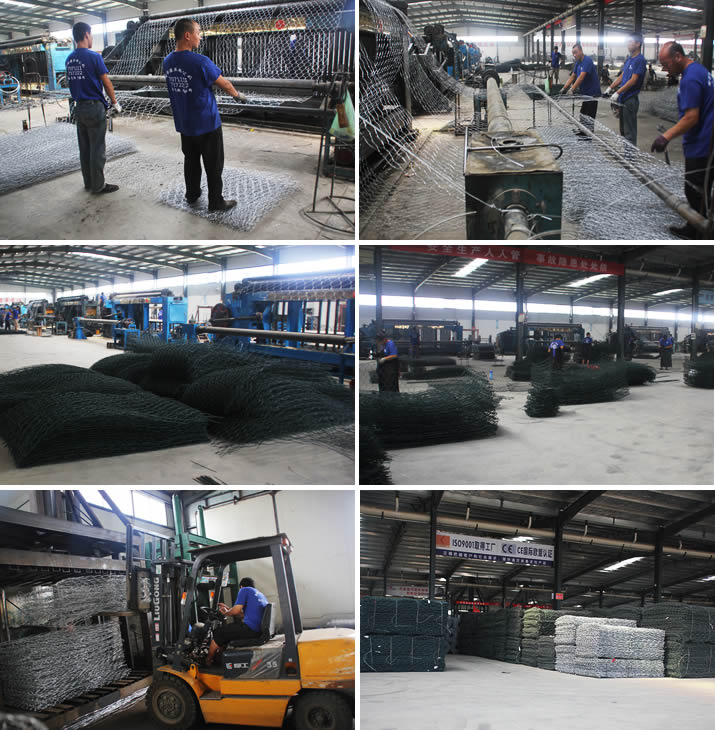

  • Workshop
  • Quality Inspection
  • Packaging

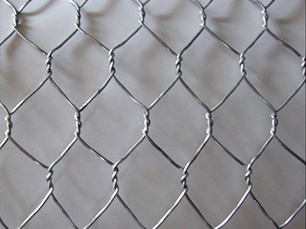

Gabion boxes are made of heavy galvanized wire / ZnAl (Galfan) coated wire / PVC or PE coated wires the mesh shape is hexagonal style. The gabion boxes are used widely in slope protection foundation pit supporting mountain rock holding river and dams scour protection.

Wire Materials:
1) Galvanized Wire:about zinc coated,we can provide 50g-500g/㎡ to meet different country standard.
2) Galfan Wire:about Galfan,5% Al or 10%Al is available.
3) PVC Coated Wire:silver,black green etc.
Gabion Basket Mesh Size:Different gabion and size

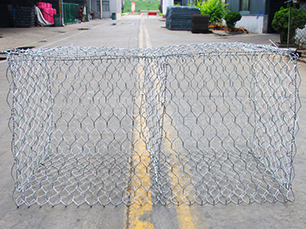

1. standard gabion box/gabion basket: size:2x1x1m

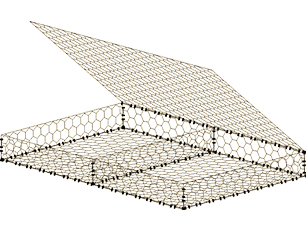

2. Reno mattress/gabion mattress: 4x2x0.3m, 6x2x0.3m
3. Gabion roll: 2x50m, 3x50m
4. Terrmesh gabion:2x1x1x3m, 2x1x0.5x3m
5. Sack gabion: 1.8x0.6m(LxW) , 2.7x0.6m
common size is 60*80mm, 80*100mm,100*120mm, 120*150mm,we can produce other allowed tolerance mesh size.

SPECIFICATIONS
Gabion Boxes
80x100mm
100x120mm
120x150mm
Mesh Wire Dia. 2.70mm Zinc coating: >260g/m2
Edge Wire Dia. 3.40mm Zinc coating: >275g/m2
Tie Wire Dia. 2.20mm Zinc coating: >240g/m2
Mattress
60x80mm
Mesh Wire Dia. 2.20mm Zinc coating: >240g/m2
Edge Wire Dia. 2.70mm Zinc coating: >260g/m2
Tie Wire Dia. 2.20mm Zinc coating: >240g/m2
Special sizes are available. Mesh Wire Dia. 2.00~4.00mm
Edge Wire Dia. 2.70~4.00mm
Tie Wire Dia. 2.00~2.20mm


  • Name:
  • Tel:
  • Email:
  • Content:

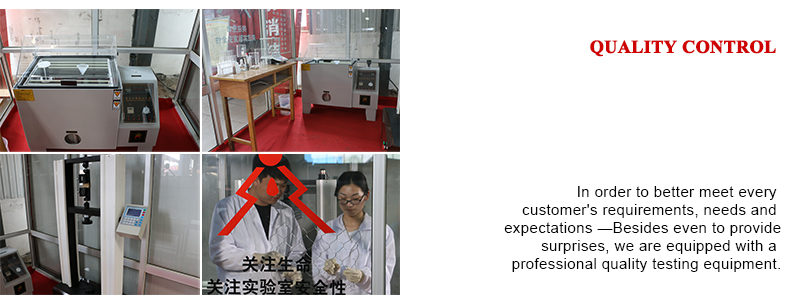

QC process:
1.zinc coated:when mattriail arriving our workshop,QA engineer will select wire randomly,then decet them in our lab.

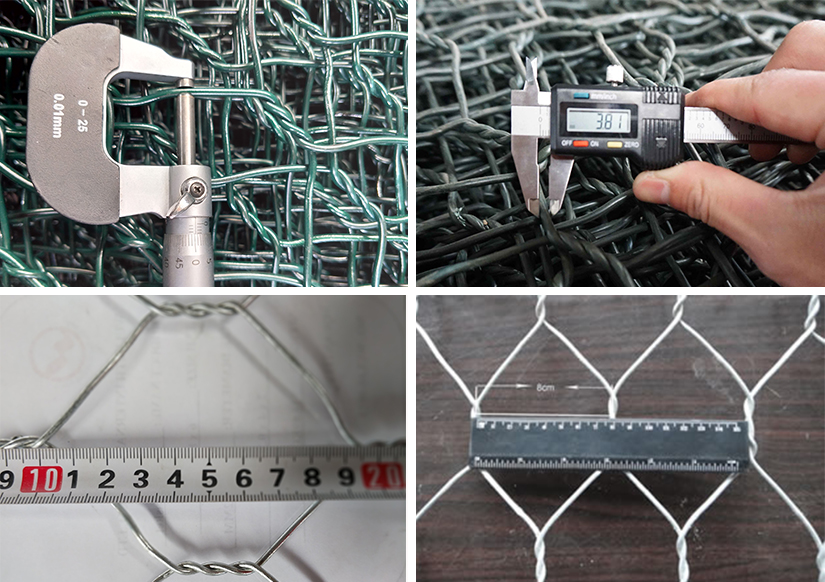

2.Wire diameter:use micrometer to test,0.5mm tolrrance is acceptable.
3.Size:we will measure L W H according customer order.

On the other way if there is any specifications wrong we can correct it immediately save more time ensure the shippment we promised.

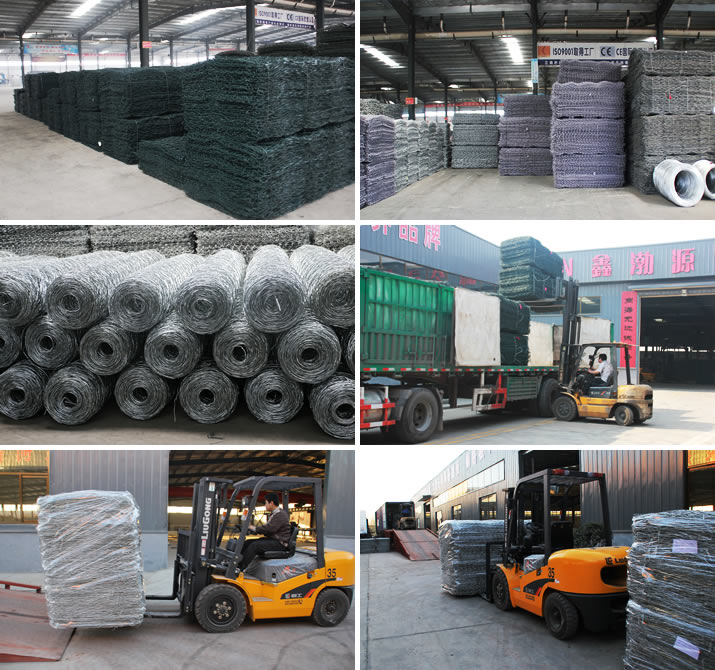

The gabion box package is folded and in bundles or in rolls. We also can pack it according to customers special request.
