Plain Steel Grating

Plain style Steel Grating

  • /uploads/product/month_1709/image/20170911103263106310.jpg

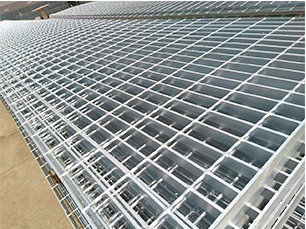

  • /uploads/product/month_1709/image/20170911103289508950.jpg

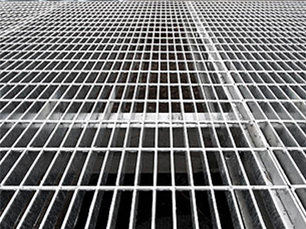

  • /uploads/product/month_1709/image/20170911103272277227.jpg
  • /uploads/product/month_1709/image/20170913113692439243.jpg

Product name: Plain style steel grating
Brand name: xinboyuan
Material: Low carbon SteelMild steel or Stainless steeletc.

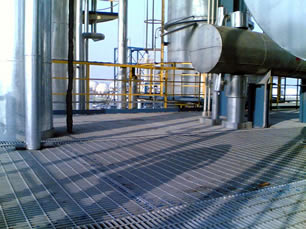

Application: commercial and industrial flooring including mezzanines catwalks platforms ramps subway and sidewalk grating.

Email: sales@ap-fence.com.cn

  • Specifications

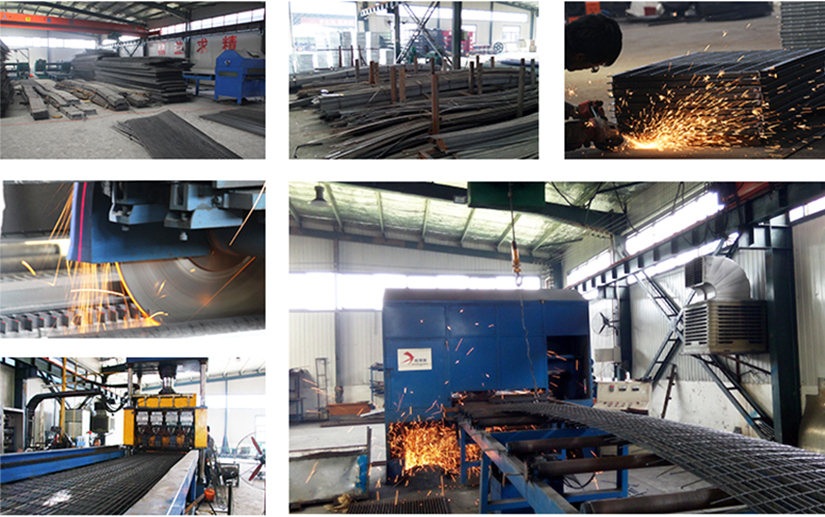

  • Workshop

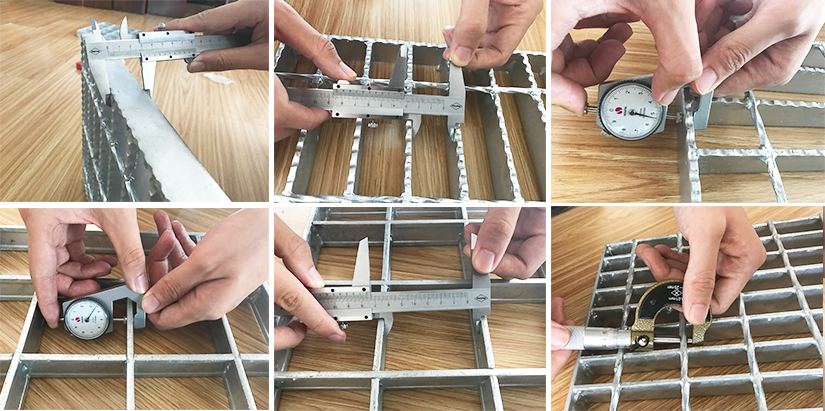

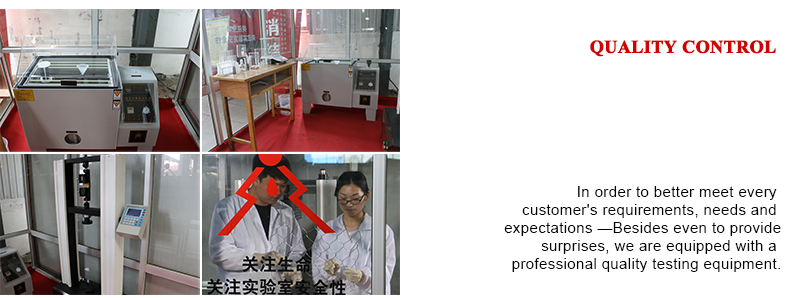

  • Quality Inspection

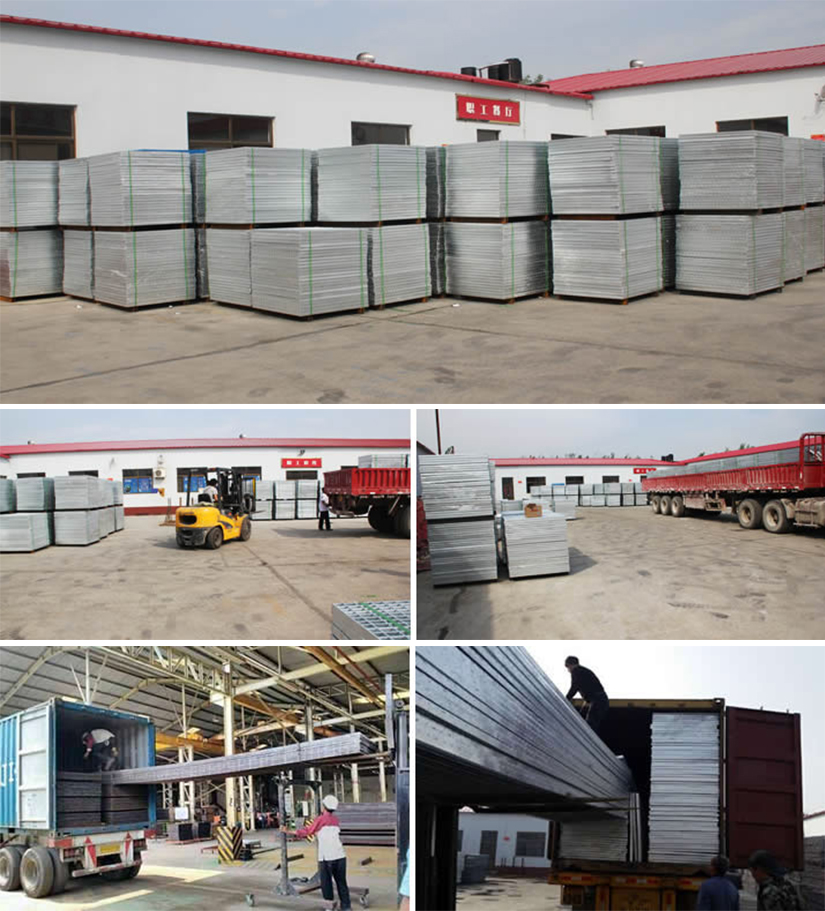

  • Packaging

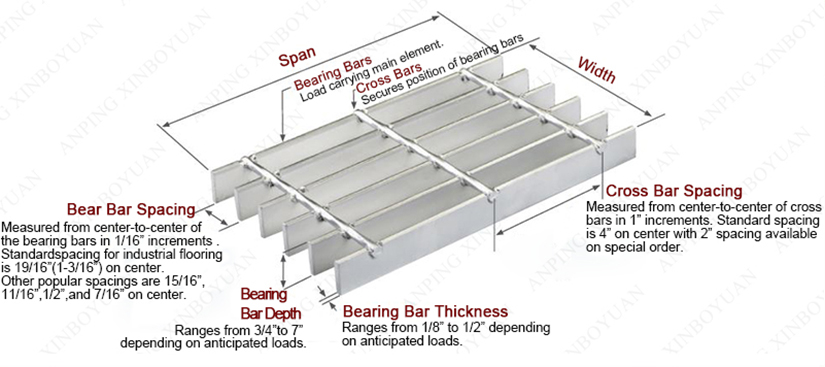

1. Bearing bar specifications:

The specification of plain type is 20*3 to 100*10 mm.
2. Bearing Bar pitch:
12.5 to 100mm etc.
3. Cross Bar pitch:
385076100101.6mm etcalso be according to client’s requirement and 50100mm are recommended.
4. Material:
Steel or Stainless Steel
5. Surface treatment:
UntreatedPainting or Hot dipped galvanzied
6. Steel grating standards:
(1) China: YB/T4001
(2) USA: ANSI/NAAMM(MBG531)
(3) UK: BS4592
(4) Australia: AS1657
(5) Japan: JJS

No. Item Description
1 Bearing bar 25x3 25x4 25x4.5 25x5 30x3 30x4 30x4.5 30x5 32x5 40x5 50x5 65x5 75x6 75x10---100x10mm etc
I bar: 25x5x3 30x5x3 32x5x3 40x5x3 etc
US standard: 1''x3/16'' 1 1/4''x3/16'' 1 1/2''x3/16'' 1''x1/4'' 1 1/4''x1/4'' 1 1/2''x1/4'' 1''x1/8'' 1 1/4''x1/8'' 1 1/2''x1/8'' etc
2 Bearing bar pitch 12.5 15 20 23.85 25 30 30.16 30.3 32.5 34.3 35 38.1 40 41.25 60 80mm etc
US standard: 19-w-4 15-w-4 11-w-4 19-w-2 15-w-2 etc.
3 Cross bar 5*56*68*8mm(twisted bar or round bar)
4 Cross Bar Pitch 38 50 60 76 80 100 101.6 120mm 2'' & 4'' etc
5 Material Grade ASTM A36A1011A569Q235S275JRSS304SS400
Mild steel & Low carbon steeletc.
6 Surface Treatment Black self colour hot dip galvanized painted spray coating
7 Flat bar type PlainSerrated(tooth-like)I bar (I section)
8 Standard China:YB/T 4001.1-2007USA:ANSI/NAAMM(MBG531-88)
UK:BS4592-1987Australia:AS1657-1985
Germany:DIN24537-1-2006
Japan:JJS.
  • Name:
  • Tel:
  • Email:
  • Content:

The factory of our company has high ability to manufacture galvanized steel grating in large quantity. We can ensure the quality at a competitive price,and we can manufacturer all kinds of galvanized steel grating.
