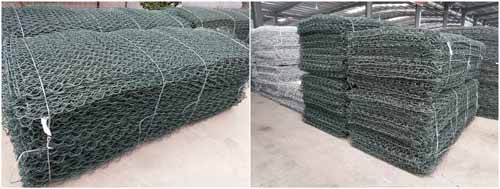

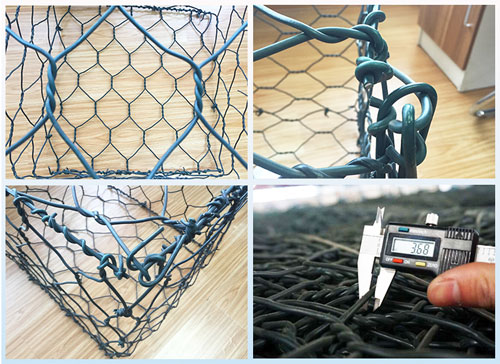

PVC Coated Gabion Box

PVC Coated Gabion Box Specifications:

1.Gabion box materials: hot dipped galvanized wire and PVC coated galvanized wire , PVC color : dark green, gray ,black , Galfan Wire
2.Gabion box mesh wire: 2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm
3.Gabion box selvedge wire diameter: 2.4mm,2.7mm,3mm,3.4mm,4mm
4.Gabion box mesh hole : 6*8cm,8*10cm,10*12cm,12*15cm
5.Gabion box Tie wire/lacing wire : 2.2mm, 3%,5%,8% of weight
6.Gabion box Zinc coating : 250-300/m2
7.Gabion box size : 1*1*1m, 2*1*1m,2*1*0.5m,3*1*1m, 4*1*1m,as your requestments.

8.Gabion box With diaphragms

Pvc Coated Gabion Mesh Specifications

Opening (mm)	WireDiameter (mm)	Wire Diameter(PVC Coated) Inner/outside(mm)	Strands
60x80	2.0-2.8	2.0/3.0-2.5/3.5	3
80x100	2.0-3.2	2.0/3.0-2.8/3.8	3
80x120	2.0-3.2	2.0/3.0-2.8/3.8	3
100x120	2.0-3.4	2.0/3.0-2.8/3.8	3
100x150	2.0-3.4	2.0/3.0-2.8/3.8	3
120x150	2.0-4.0	2.0/3.0-3.0/4.0	3

PVC coated Gabion Box specifications

Length	Width	Height	Diaphragm	Volume	Tolerance
2.0m	1.0m	0.3m	1	0.6m3
3.0m	1.0m	0.3m	2	0.9m3
4.0m	1.0m	0.3m	3	0.2m3
2.0m	1.0m	0.5m	1	1.0m3	L+/-3%
3.0m	1.0m	0.5m	2	1.5m3	W+/-5%
4.0m	1.0m	0.5m	3	2.0m3	H+/-5%
1.0m	1.0m	0.5m	0	1.0m3
1.0m	1.0m	1.0m	0	1.5m3
2.0m	1.0m	1.0m	1	2.0m3
3.0m	1.0m	1.0m	2	3.0m3
4.0m	1.0m	1.0m	3	4.0m3

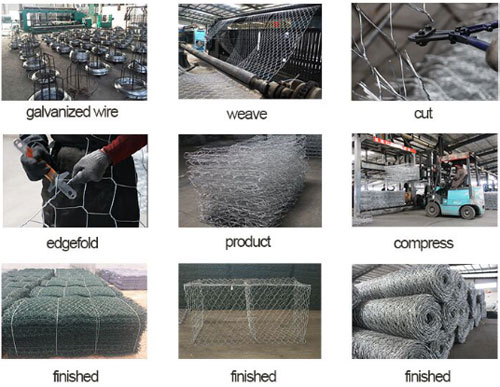

Pvc Coated Gabion Box Production Process

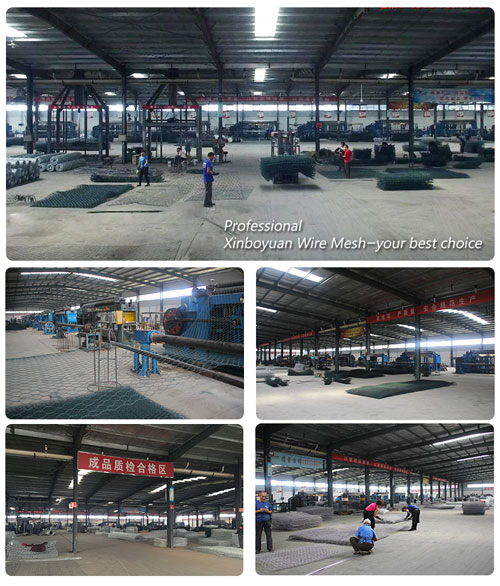

PVC Coated Gabion Box Work Shop

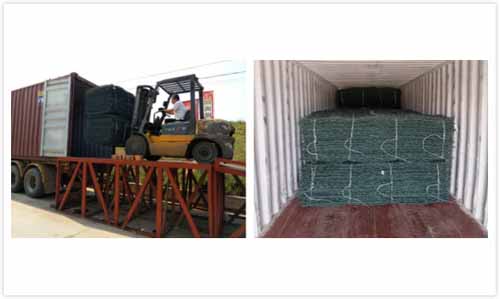

PVC Coated Gabion Box Packaging & Delivery
Packaging Details:
1. compacted before packaging.
2. Plastic packaging outside and on the pallet. or according to the customers' requirements
3. One 20'container can contain more than 8,000 square meters. 40' container can contain more than 15,000 square meters.
Delivery Detail:
7-15days after prepayment.
