Welded gabion

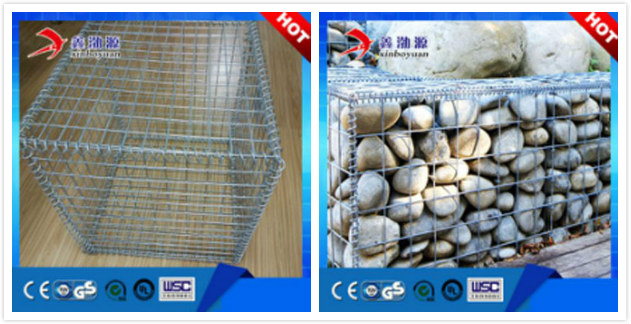

Welded gabion are wire mesh containers welded with high quality steel mesh. They can be filled on site with hard durable stone materials to form mass gravity retaining structures. Owing to their inflexibility, welded gabions can not adapt to differential settlement or be used in water courses. In comparison with woven wire gabions, welded gabions offer a higher strength. In order to meet different project requirements, various wire diameters and unit sizes are available for welded gabion boxes.

Technical Note:

Mesh Size: Mesh openings should be square of nominal dimension of 76.2mm on the grid.

Mesh Wire: Nominal wire diameter should be 3.0mm to BS 1052.

Standard Sizes: 2mx1mx1m, 2mx 1mx0.5m, 1mx1mx1m, 1mx1mx0.5m, 1.5m x1mx1m

Surface Treatment: 95% zinc 5% aluminium coating for corrosion resistance

Assembly: Assembled with stainless steel clips connecting side panels and diaphragms to the base panel

Joining: welded gabion box should be provided with lacing wire for site assembly, which should be? of minimum wire diameter 2.2mm for final joining.
