I Type Steel Grating Price
I type Steel Grating made by welding with flat steel and cross/round bars with certain distances. Our Steel Grating enjoy the feature of high strength, light structure, high bearing, convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion.

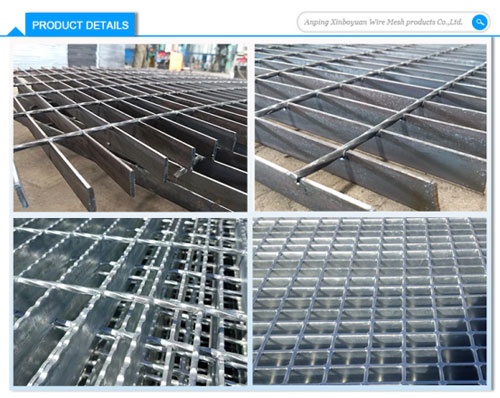

Description of I type steel grating:

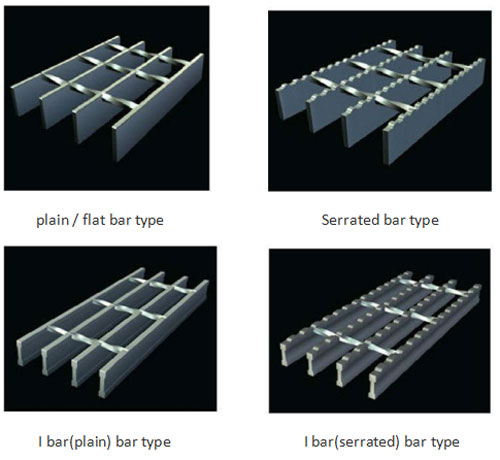

2)Types of Steel Grating: Plain/smooth type, I type ,Serrated/teeth type.

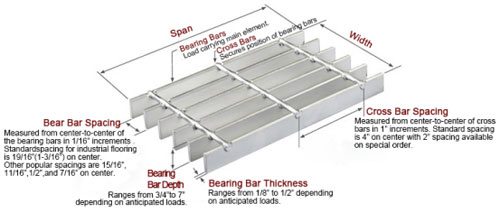

Specification of I type steel grating:
| Item | Description |
Bearing Bar
| 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
Bearing Bar Pitch
| 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
Twisted Cross Bar Pitch
| 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
Material Grade
| ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc |
Surface Treatment
| Black, self colour, hot dip galvanized, painted, spray coating |
Grating Style
| Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
Standard
| China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985,
Germany: DIN24537-1-2006, Japan :JIS |

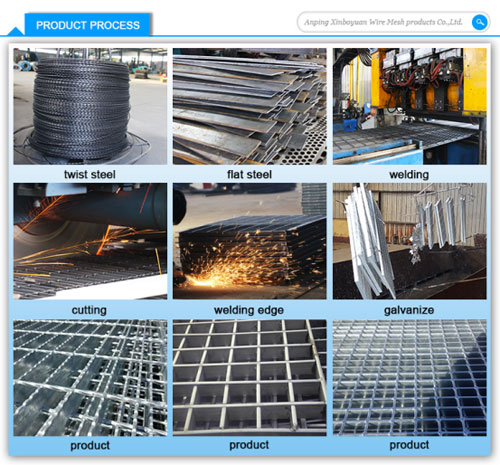

Process of I type steel grating

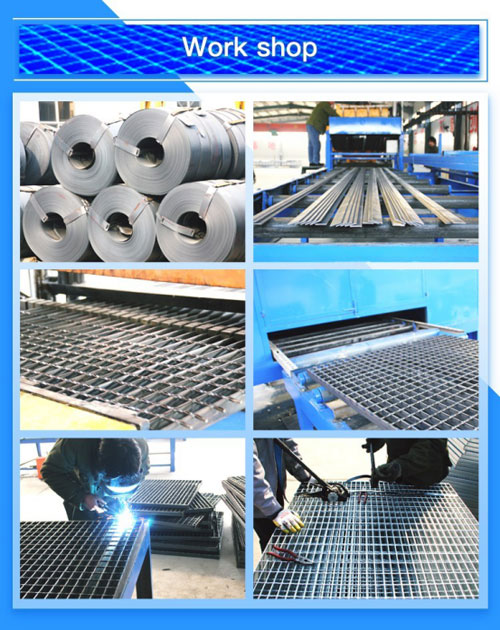

Workshop of I Type Steel Grating

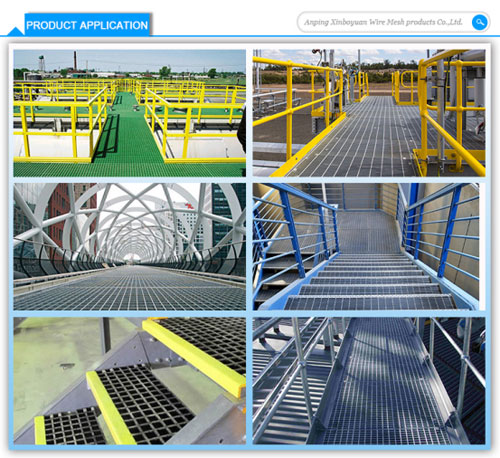

Application of I type steel grating:
I type Steel Grating can be widely used in various industrial buildings, such as metallurgy, building materials, power stations, boilers, ship building, , municipal construction, etc.
I type Steel grating advantage
Light weight,great load-bearing capacity,non-slip and safe,easy installation,material-economic,sturdy and durable, ventilated,easy to clean and attractive appearance.

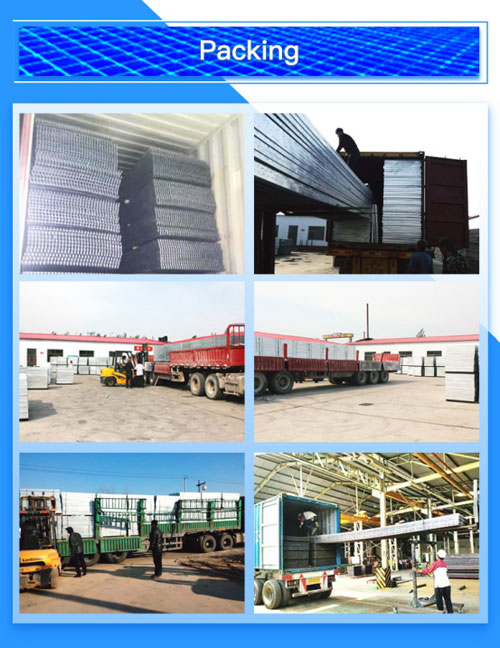

Packing of I type steel grating:
